Wendougee Data S Espresso Machine
Wendougee Data S Espresso Machine
Couldn't load pickup availability
Availability: The main Data S configurations are currently sold out. Availability can change with future production; select the desired finish and water configuration for the current status.
Electrical requirement: The Data S is a 110V, 2,200W machine supplied with a NEMA 5-20 plug. It requires a correctly wired dedicated 20A circuit and will not operate from a standard 15A receptacle.
Choose the water configuration carefully: “Tank Only” variants use the 1.5 L reservoir. “Direct Connect + Tank” variants add direct-water capability while retaining the reservoir.
Wendougee Data S Pressure-Profiling Espresso Machine

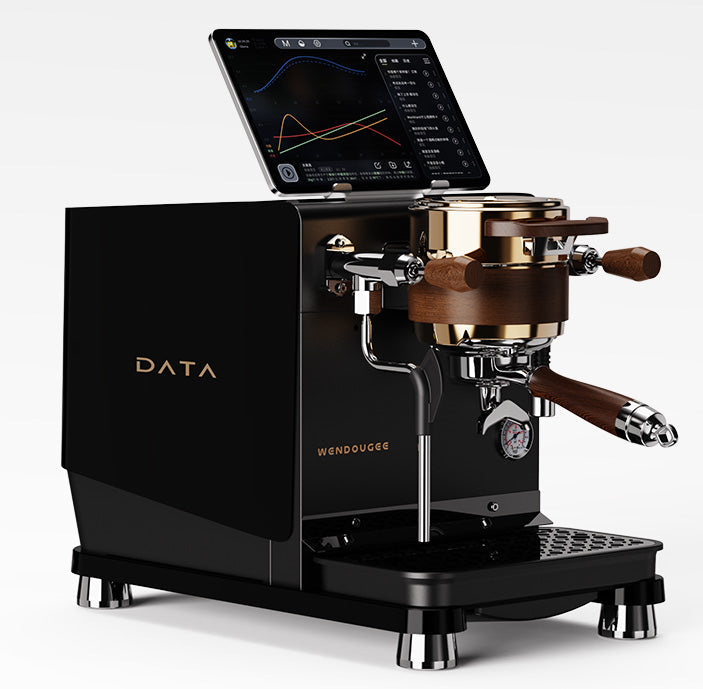

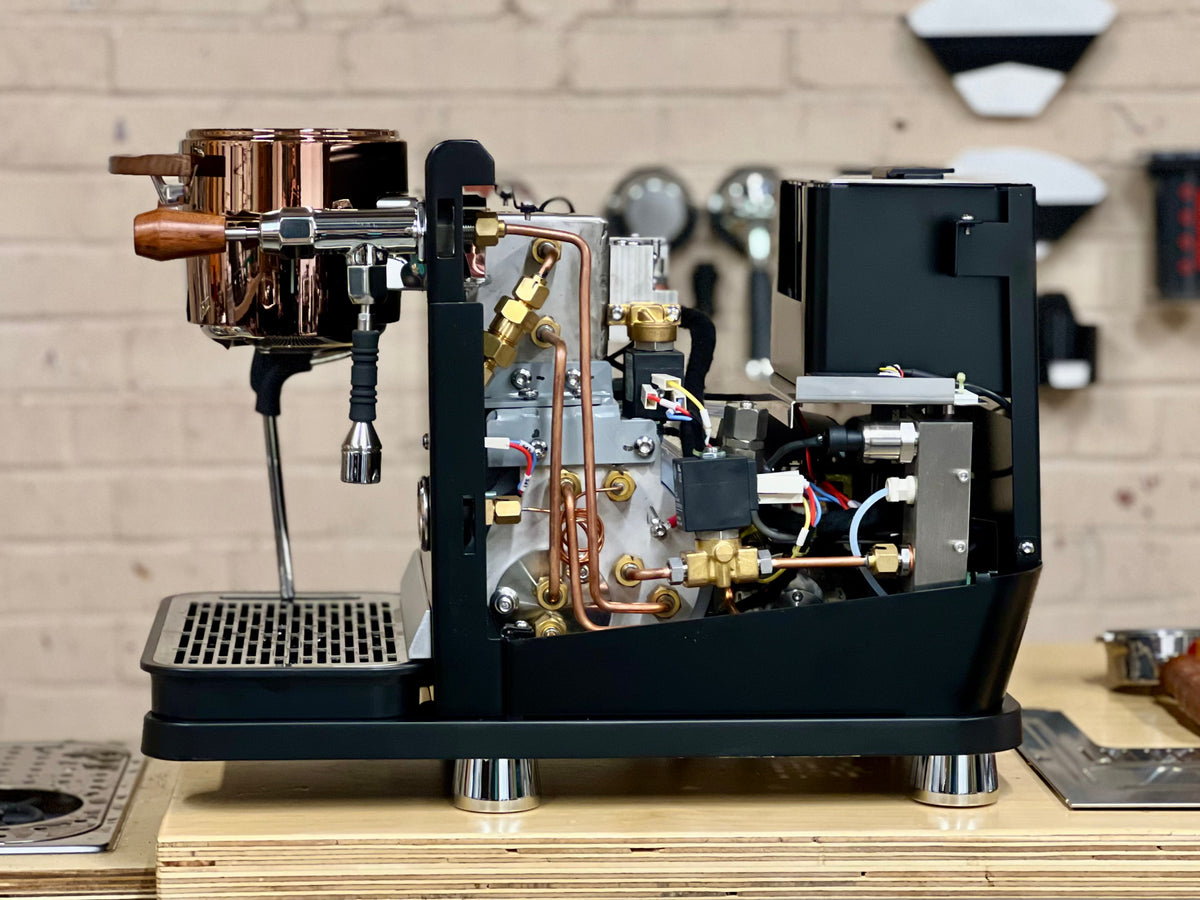

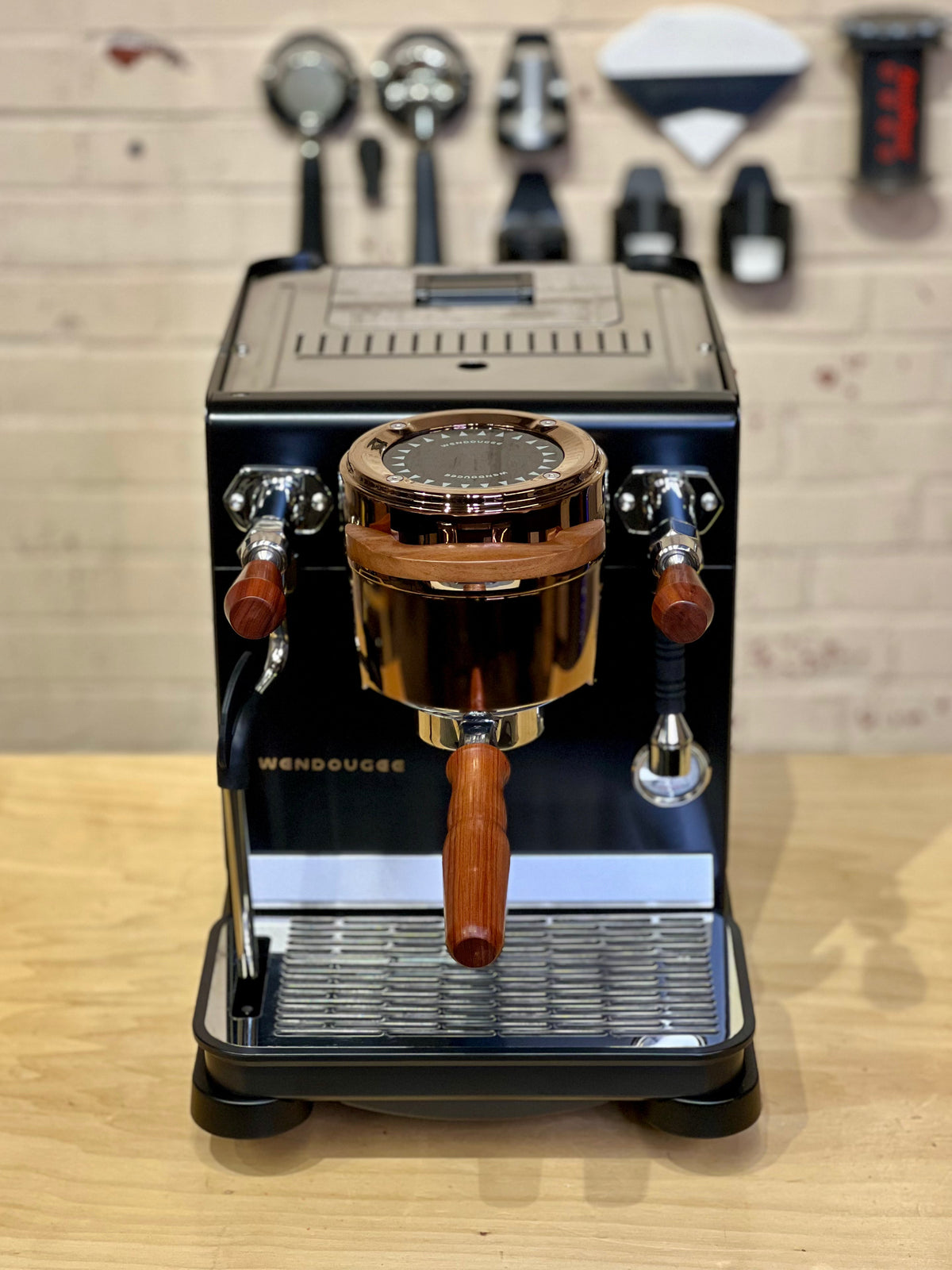

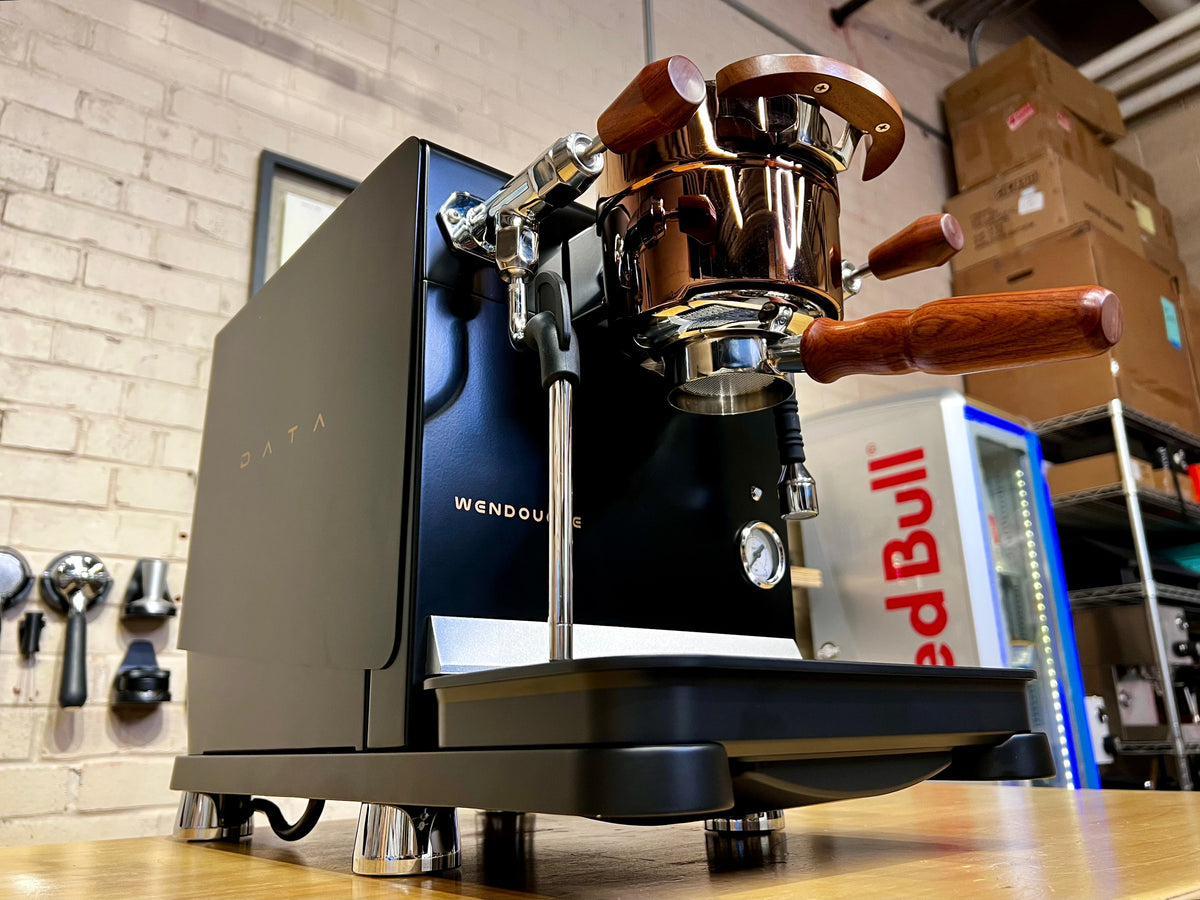

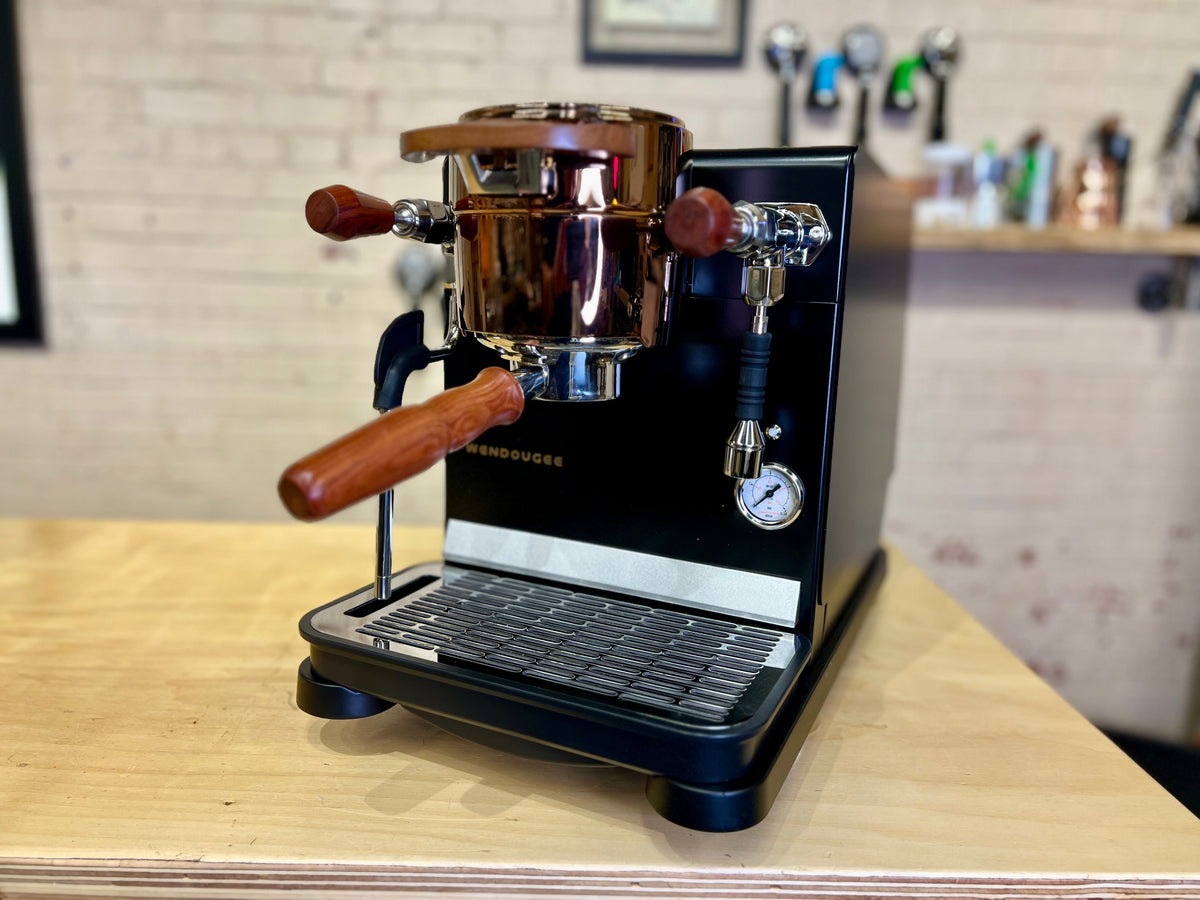

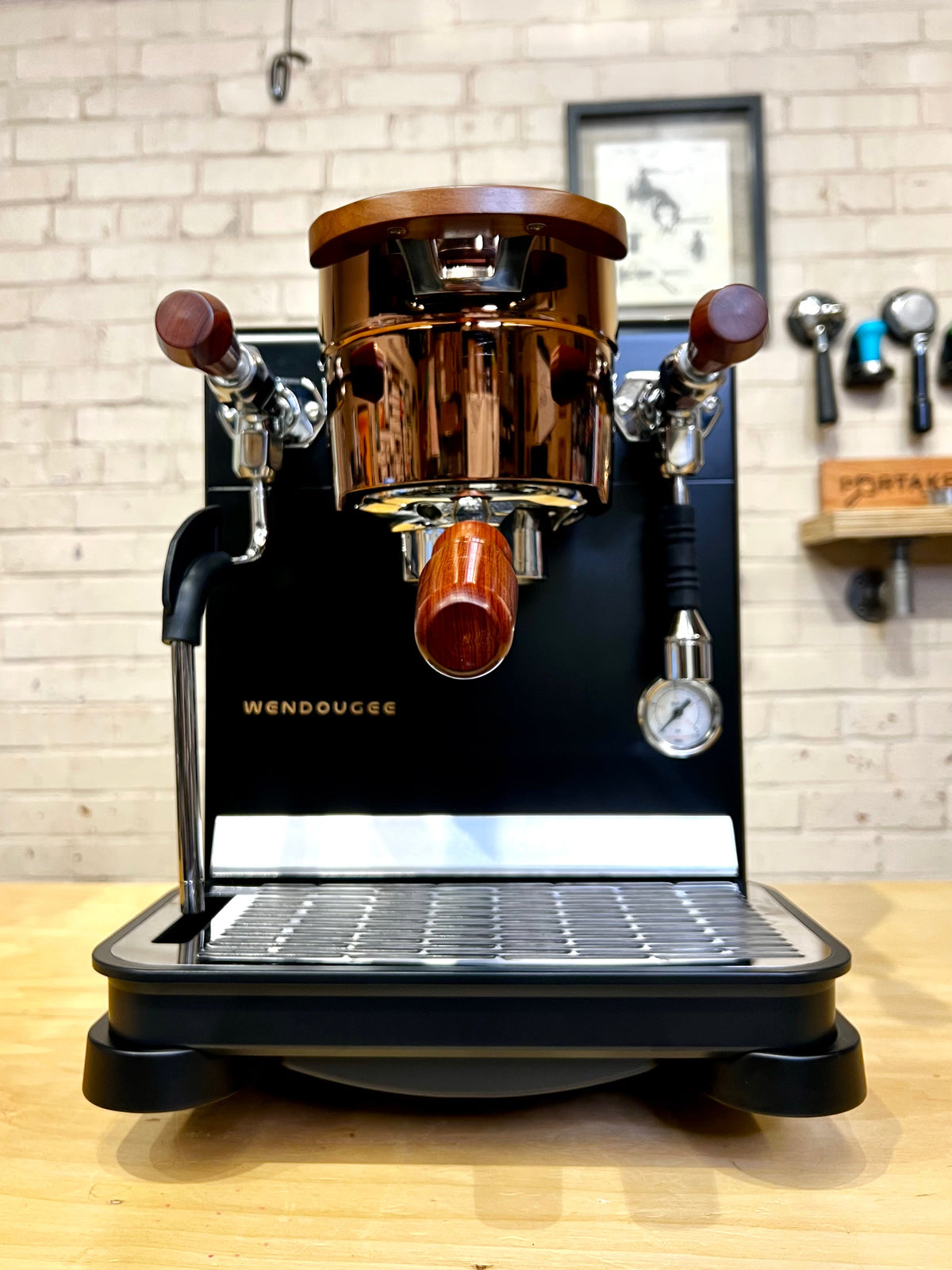

The Wendougee Data S is a compact dual-boiler espresso machine built around a 0.8 L stainless-steel brew boiler, 1.8 L stainless-steel steam boiler and gear-pump pressure control. It is intended for advanced home baristas and specialized installations where pressure profiling, substantial steam capacity and optional direct-water operation matter.
A tablet is an optional add-on and is not included in the base machine price. Plan the electrical supply, counter depth, tablet clearance and water configuration before ordering.
Is the Data S Right for You?
- Choose it for: Gear-pump pressure profiling, independent brew and steam boilers, strong milk-drink capacity and optional direct plumbing.
- Electrical planning is mandatory: A standard 15A kitchen outlet is not sufficient.
- Allow enough depth: The machine is approximately 19.25 inches deep before allowing room for hoses, the power cord and working clearance.

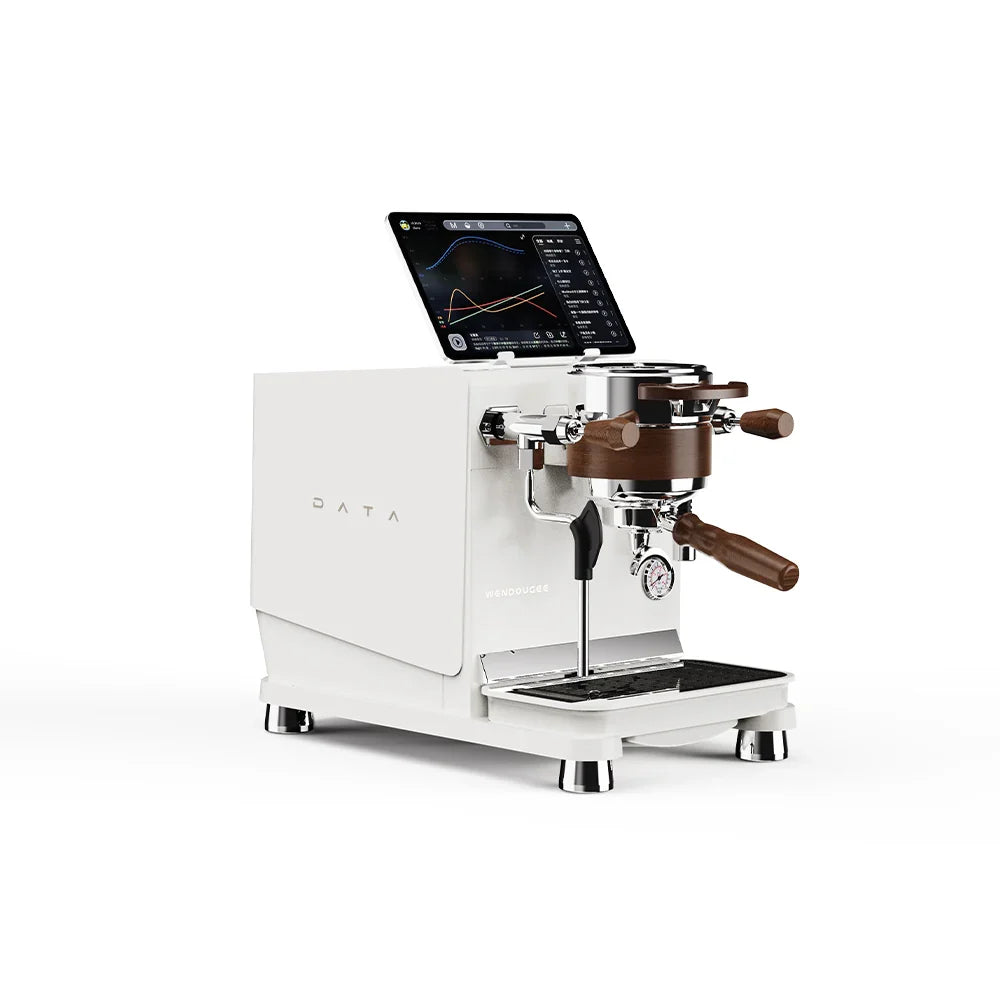

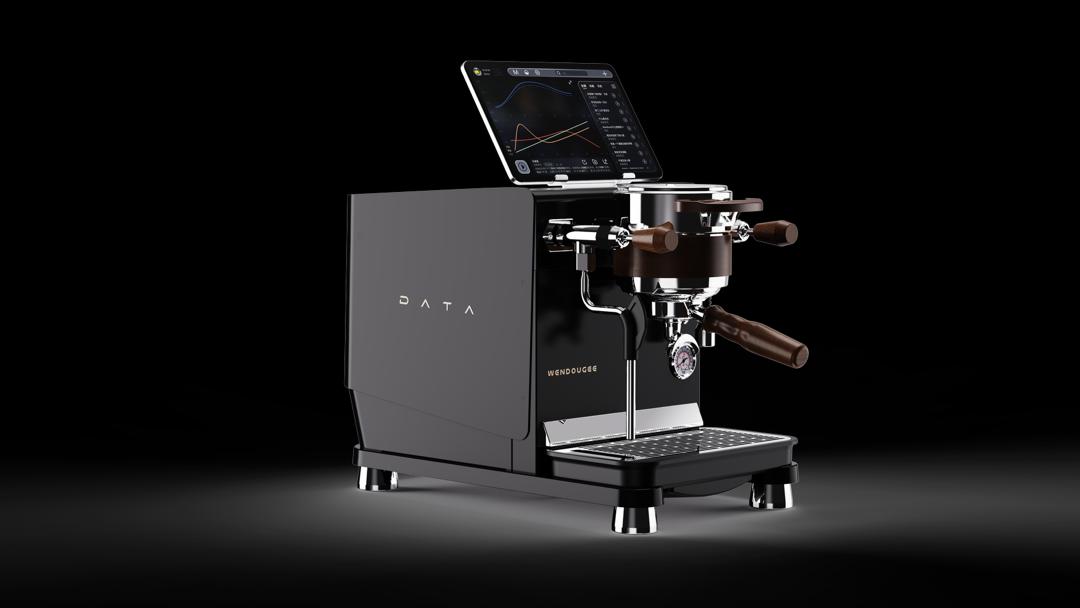

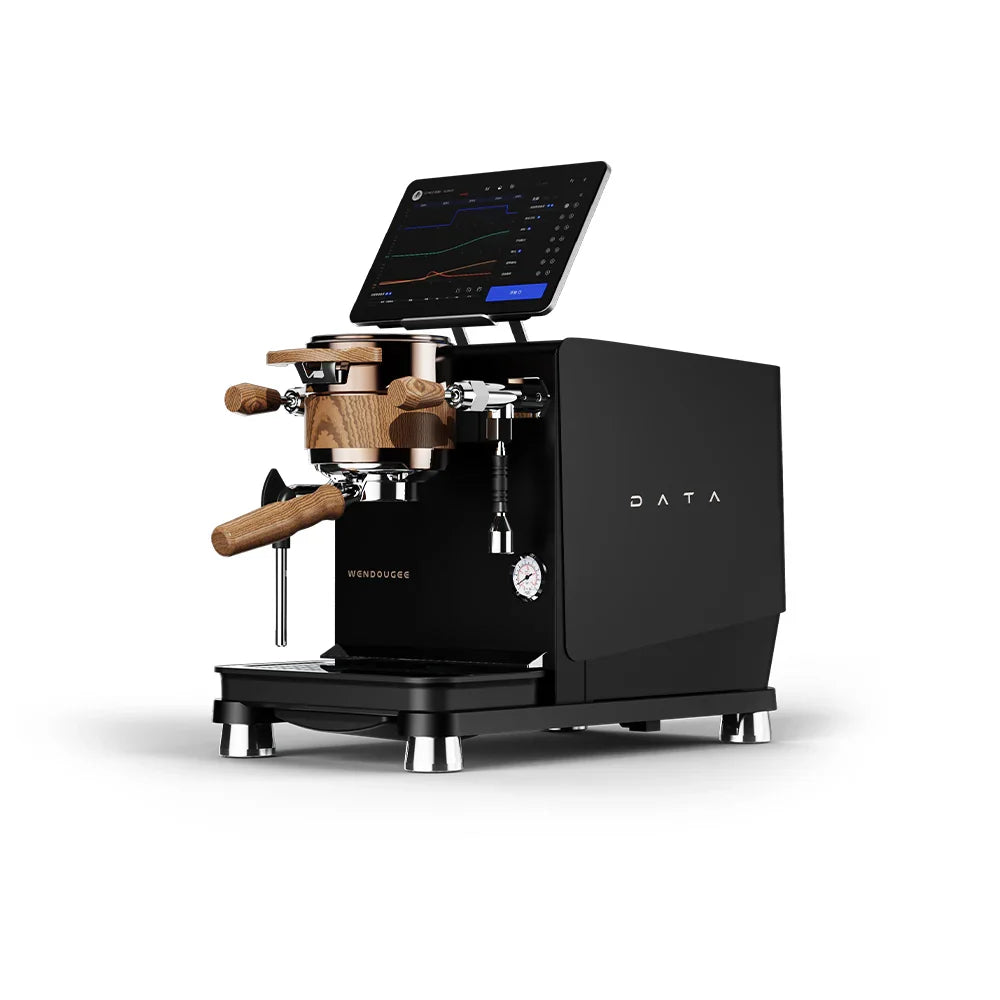

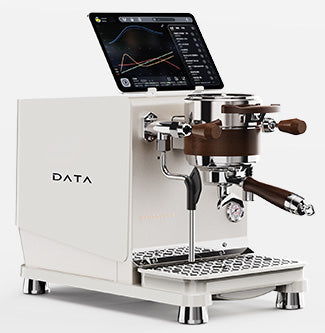

- Tablet is optional: The base price does not include a tablet; total height depends on the device and stand position.
- Commercial buyers: Confirm all locally required equipment certifications, electrical rules, plumbing rules and health-department requirements before purchase. Do not assume that residential suitability establishes commercial approval.
Data S Specifications
| Electrical | 110V, 2,200W, NEMA 5-20 plug; dedicated 20A circuit required |
|---|---|
| Brew boiler | 0.8 L stainless steel |
| Steam boiler | 1.8 L stainless steel |
| Pump | Wendougee gear pump |
| Reservoir | 1.5 L |
| Water configurations | Tank Only or Direct Connect + Tank, depending on selected variant |
| Dimensions without tablet | 11.4″ W × 19.25″ D × 14.6″ H |
| Approximate height with 10″ tablet | Approximately 20.5″; varies by device and positioning |
| Tablet | Optional; not included with base machine |
Tank Only or Direct Connect + Tank?
Choose Tank Only when the machine will be filled manually and you do not plan to connect it to a permanent water supply. This is the simpler installation.

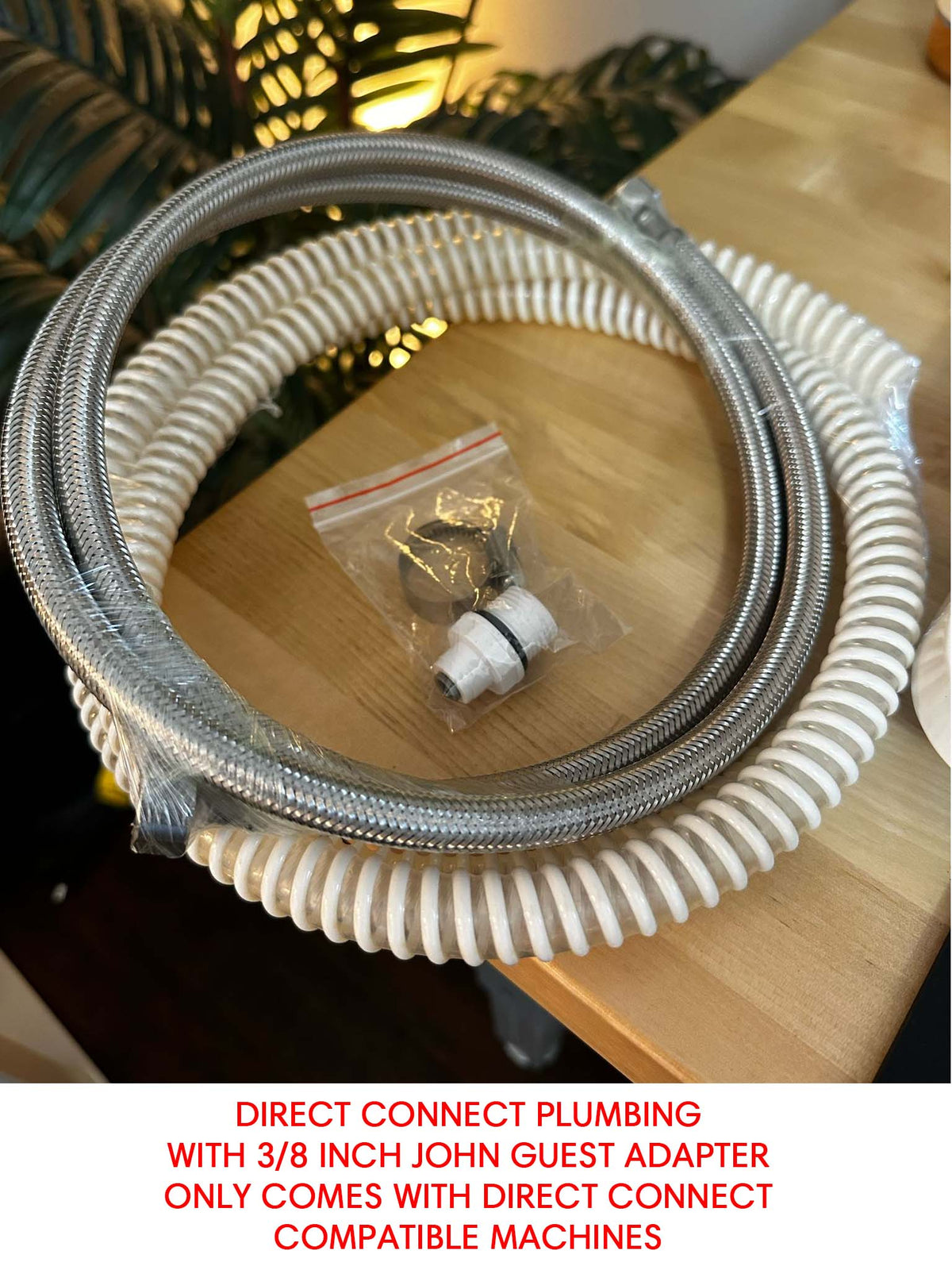

Choose Direct Connect + Tank when you want the option to use a properly prepared water line while retaining reservoir operation. Direct plumbing requires suitable espresso-equipment filtration, pressure management, an accessible shutoff valve, leak protection and a planned drain arrangement.
Before purchasing adapters, confirm the supplied machine connection and the thread used by the existing water line. Do not assume that a hose from another espresso machine will connect directly.
Data S vs Wendougee LITA LA
| Buying factor | Data S | LITA LA |
|---|---|---|
| Boilers | 0.8 L brew + 1.8 L steam | 0.35 L saturated brew group + 0.8 L steam |
| Pump system | Gear pump | Two electromagnetic pumps |
| Water source | Reservoir or selected direct-connect configuration | Reservoir |
| Best fit | Larger boilers, advanced profiling and installation flexibility | Smaller home setup with pressure control at a lower price |
| Primary consideration | Dedicated 20A connection, greater depth and higher price | Smaller boilers and no direct-water option |
Data S Electrical Connection
The receptacle should have the horizontal slot used by a NEMA 5-20 connection and must be served by correctly sized wiring and a 20A breaker. Receptacle appearance alone does not prove the circuit is suitable; consult a qualified electrician before ordering if there is any uncertainty.
Data S Support and Videos
Visit Wendougee USA for current brand information. Espresso Outlet provides support for machines purchased from Espresso Outlet. The Wendougee espresso community also contains owner discussions and availability updates.
